Multiple GE RJ45 + SFP Slots + Media Sharing
IPS 4.5 Gbps
NGFW 2.5 Gbps
800 Mbps protection
The FortiGate Next-Generation Firewall 90G series is ideal for creating security-oriented networks in and transform WAN architecture at any scale. scale.
With a rich set of AI/ML-based FortiGuard security services and our integrated platform, the FortiGate 90G series offers coordinated, automated, end-to-end protection against threats in all use cases.
FortiGate has the industry's first integrated SD-WAN and zero-trust network access (ZTNA) in an NGFW solution. in an NGFW solution and is powered by one operating system. The FortiGate 90G automatically controls, verifies and facilitates user access to applications, providing consistency with a user experience.
QD7 is an authorized Fortinet reseller, contact us now and request a quote for the best Firewall on the market!FortiOS enables the convergence of high-performance networking and security across the entire Fortinet security fabric. Because it can be deployed anywhere, it delivers consistent results and context-based security posture across network, endpoint and multi-cloud environments.
Interactive detail and topology visualizers that display status in real time;
Click fix that provides accurate and fast protection against threats and abuse;
Unique threat scoring system correlates weighted threats with users to prioritize investigations.
Traditional firewalls cannot protect against today's content- and connection-based threats because they rely on off-the-shelf hardware and general-purpose CPUs, causing a dangerous performance gap. Fortinet's customized SPU processors deliver the power you need - up to 520 Gbps - to detect emerging threats and block malicious content, while ensuring your network security solution does not become a performance bottleneck.
FortiManager, Fortinet's centralized management solution from Fortinet, allows integration management of the Fortinet security structure, including devices such as FortiGate, FortiSwitch, and FortiAP. It simplifies and automates the supervision of network and security functions in various environments, serving as the fundamental component for deploying Hybrid mesh firewalls.
FortiGuard Labs' suite of AI-powered security services - natively integrated into your NGFW - secures the web, content and devices and protects networks against ransomware and sophisticated cyber attacks.
Real-time SSL inspection (including TLS 1.3) provides full visibility of users, devices and applications across the entire attack surface.
A tecnologia patenteada SPU (Security Processing Unit) da Fortinet fornece proteção de alto desempenho líder do sector. proteção de elevado desempenho.
FortiGate WAN Edge powered by a unified security and management operating system and framework and systems transform and protect WANs
Offers superior quality of experience and effective security posture for working anywhere where models, SD-Branch and WAN use cases that prioritize the cloud
Achieve operational efficiency at any scale through automation, in-depth analysis and self-healing
Control access to applications, no matter where the user is or where they are. the application is hosted for universal application of access policies.
Provides extensive authentication, checks and applies policies before granting the application access - always.
Agent-based access with FortiClient or agentless access via proxy portal for guests or BYOD

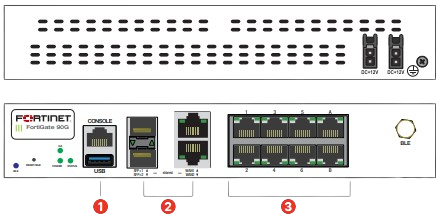

1x RJ45 console and 1x USB management port
2x 10/5/2.5/ GE RJ45 or 10GE/GE SFP+/SFP shared media ports
8x GE RJ45 ports
Designed for small environments, you can place it on a table or mount it on the wall. It's small, lightweight, but highly reliable with a superior MTBF (mean time between failures), minimizing the chance of a network interruption.
The FortiGate 90G series features a dedicated module that strengthens physical network devices by network devices by generating, storing and authenticating cryptographic keys. Security mechanisms Hardware-based security mechanisms protect against malicious software and phishing attacks.
| 10/5/2.5/GE RJ45 or 10GE/GE SFP+/ Shared SFP media pairs | 2 |
| GE RJ45 internal ports | 8 |
| Wireless interface | - |
| USB port | 1 |
| Console (RJ45) | 1 |
| Internal storage | - |
| Trusted platform module (TPM) | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| IPS transfer rate 2 | 4.5 Gbps |
| NGFW transfer rate 2,4 | 2.5 Gbps |
| Threat protection throughput 2,5 | 2.2 Gbps |
| Firewall throughput (UDP packets of 1518 / 512 / 64 bytes) | 28 / 28 / 27.9 Gbps |
| Firewall latency (64 bytes, UDP) | 3.23 μs |
| Firewall throughput (packet per second) | 41.85 Mpps |
| Concurrent sessions (TCP) | 1.5 M |
| New sessions/second (TCP) | 124 000 |
| Firewall policies | 5000 |
| IPsec VPN transfer rate (512 bytes) 1 | 25 Gbps |
| IPsec VPN tunnels gateway to gateway | 200 |
| IPsec client-gateway VPN tunnels | 2500 |
| SSL-VPN throughput | 1.4 Gbps |
| Simultaneous SSL-VPN users (Maximum recommended, tunnel mode) | 200 |
| SSL inspection throughput (IPS, avg. HTTPS) 3 | 2.6 Gbps |
| Simultaneous SSL Inspection Session (IPS, HTTPS media) 3 | 300 000 |
| Application control transfer rate (HTTP 64K) 3 | 6.7 Gbps |
| CAPWAP transfer rate (HTTP 64K) | 23.6 Gbps |
| Virtual Domains (Standard/Maximum) | 10 / 10 |
| Maximum number of FortiSwitches supported | 24 |
| Maximum number of FortiAPs (Total / Tunnel) | 96 / 48 |
| Maximum number of FortiTokens | 500 |
| High availability configurations | Active-Active, Active-Passive, Clustering |
| Height x Width x Length (inches) | 1.65 x 8.5 x 7.0 |
| Height x Width x Length (mm) | 42 x 216 x 178 mm |
| Weight | 2.47 lbs (1.12 kg) |
| Form | Desktop |
| Entry classification | 12V DC, 3A (double redundancy optional) |
| Power supply required (Redundancy optional) | Powered by up to 2 adapters 100-240V AC, 50/60 Hz (1 adapter included) |
| Power supply required (Redundancy optional) | Powered by up to 2 adapters 100-240V AC, 50/60 Hz (1 adapter included) |
| Power supply efficiency rating | 80Plus compliance |
| Maximum current | 115Vac/0.4A, 230Vac/0.2A |
| Energy consumption (Average/Maximum) | 19.9 W / 20.53 W |
| Heat dissipation | 70.0 BTU/hr |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Storage temperature | -31°F to 158°F (-35°C to 70°C) |
| Humidity | 10% to 90% without condensation |
| Noise level | 21.73 dBA |
| Operating Altitude | Up to 10,000 feet (3048 m) |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certification | USGv6/IPv6 |
